Balance Current: Up to 1.2A
Various Specifications:3S/4S/5S/... and so on
Balance Current: Up to 5A
Balance Current: Up to 10A
Various Specifications: 3~4S / 6~8S / 13S / 24S
ThunderLink Product Series
Explore the brand new product series from ThunderLink Technology, where we are committed to revolutionizing the future of battery management.
Our battery management system utilizes cutting-edge balancing technology, meticulously designed to enhance battery performance, ensure safety, and significantly extend the service life of batteries.
Our product line ranges from 1.2A inductive balancing boards to multi-string intelligent solutions, each crafted to meet the demand for efficient energy conversion and intelligent systems in various application scenarios.
With innovation at its core, ThunderLink Technology drives the development of sustainable energy technologies, working hand in hand with customers to create green and efficient energy solutions.

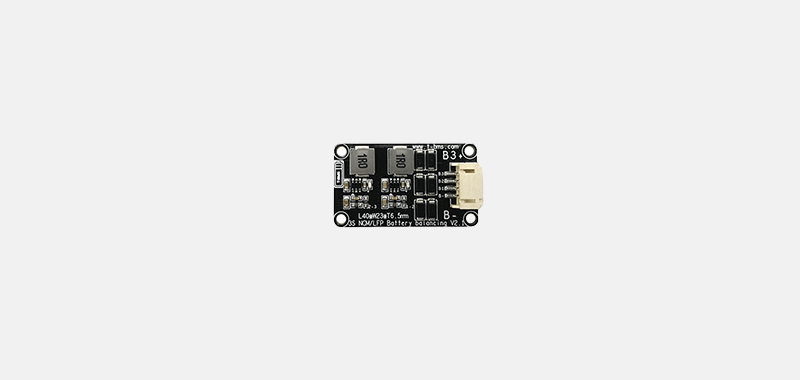

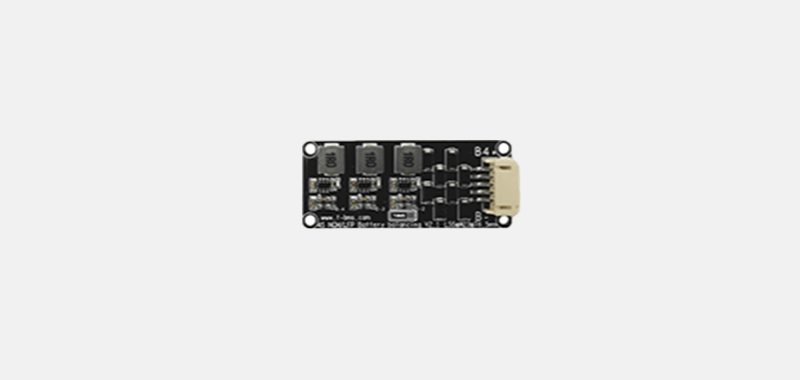

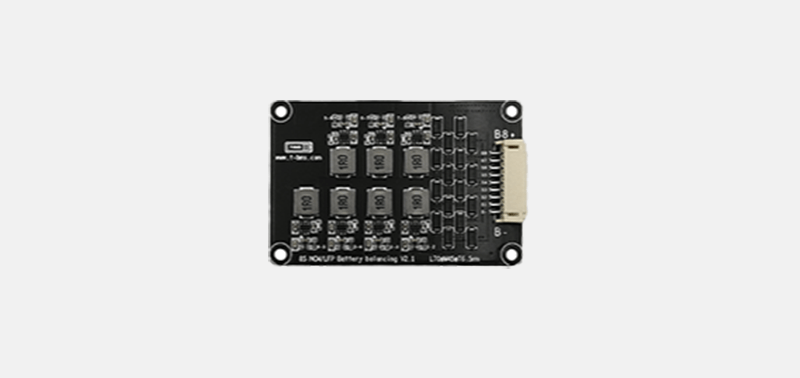

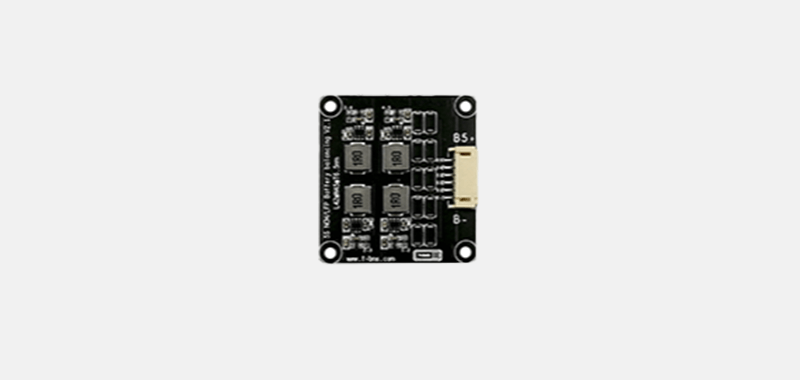

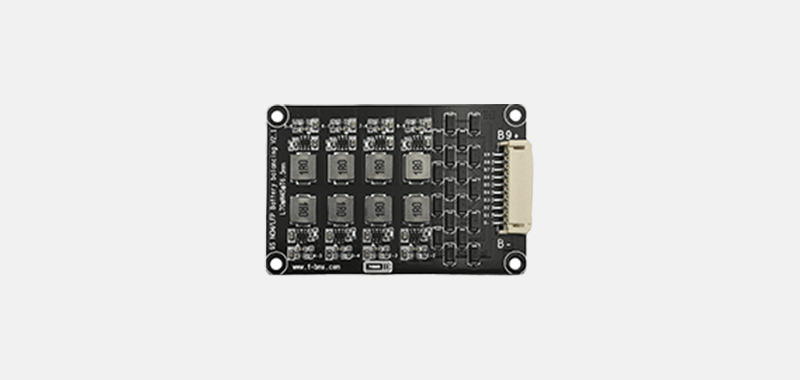

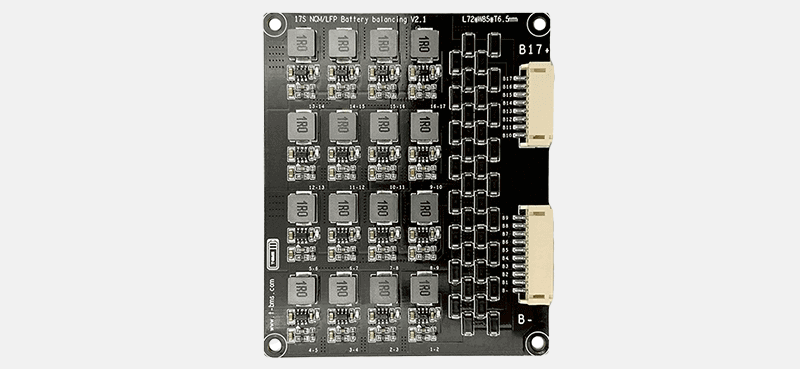

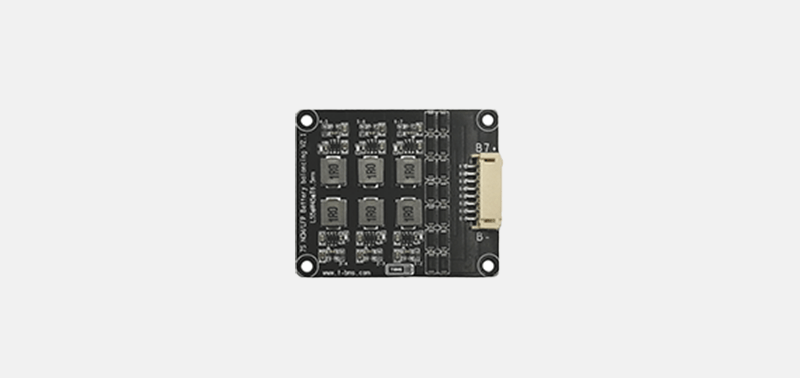

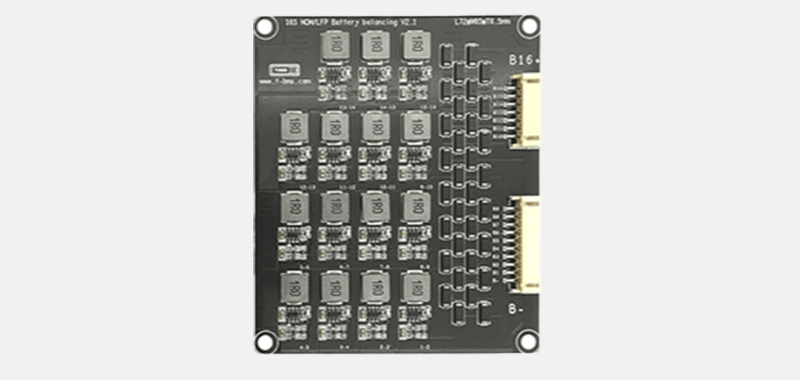

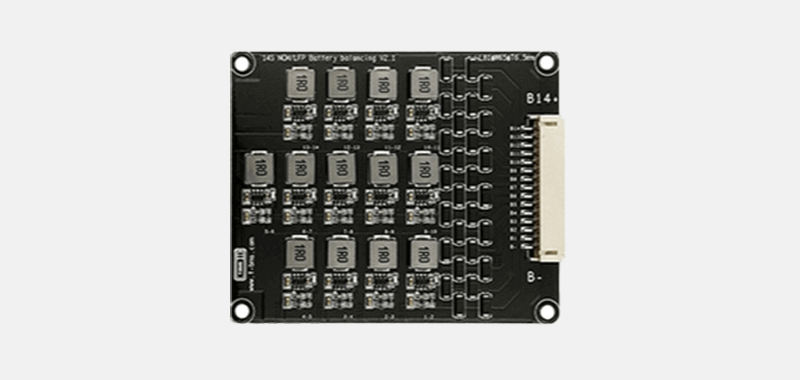

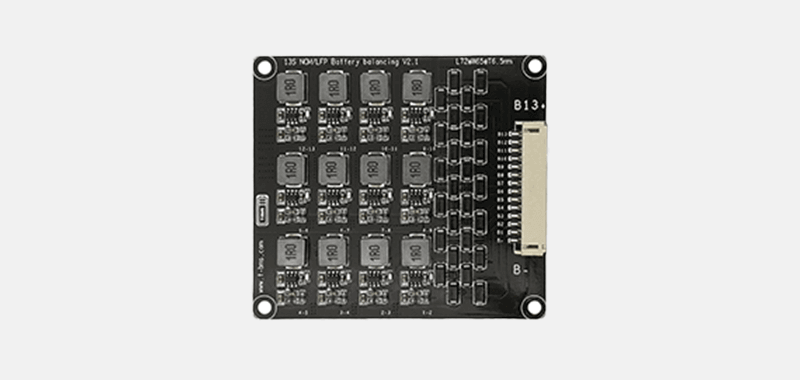

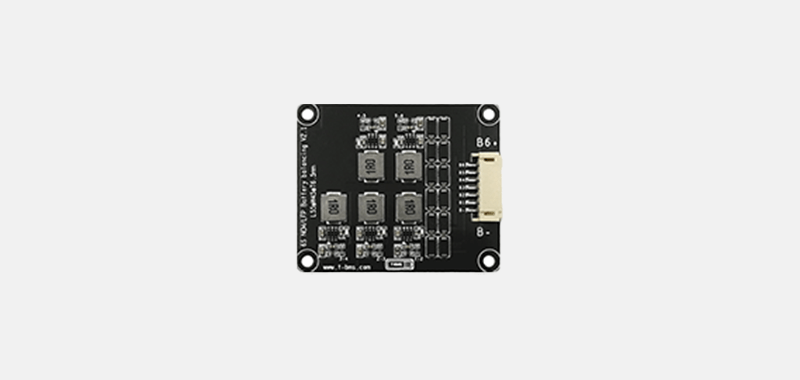

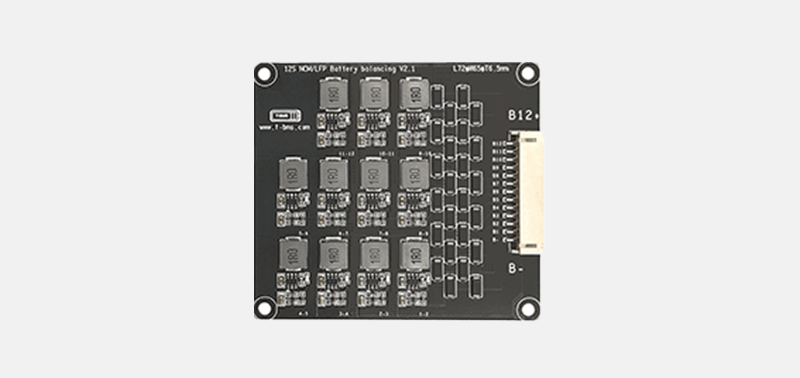

1.2A Inductive Balancing Board Series
This module performs differential voltage balancing between adjacent cells. When the voltage difference between adjacent batteries exceeds 0.1V, the chip internally triggers the balancing process, which continues until the voltage difference between adjacent cells is reduced to within 0.03V, at which point it ceases operation.
When used on battery packs during charge and discharge, the differential voltage triggers the balancing process. The voltage error of the battery pack is also pulled back to a more ideal value, reducing the cost of battery maintenance.

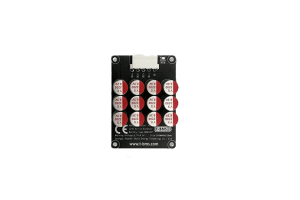

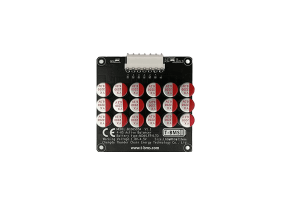

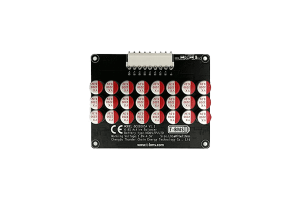

3A Capacitive Balancing Board Series

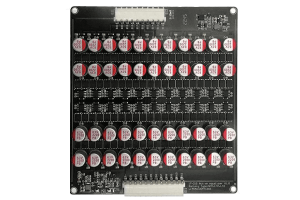

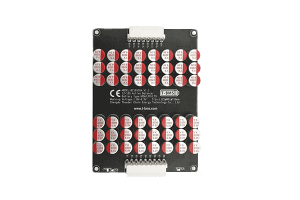

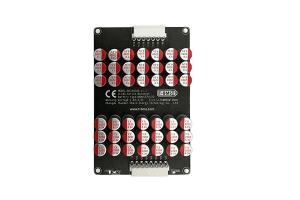

5A Capacitive Balancing Board Series
BC04S05A
4S (Compatible with 3-4 strings)
BC06S05A
6S (Compatible with 4-6 strings)
BC08S05A
8S (Compatible with 6-8 strings)
BC14S05A
14S (Compatible with 9-14 strings)
BC16S05A
16S (Compatible with 12-16 strings)
BC21S05A
21S (Compatible with 17-21 strings)

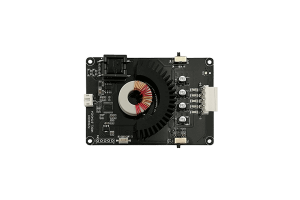

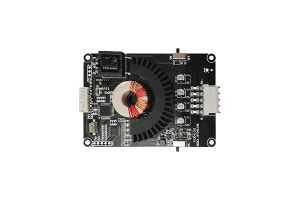

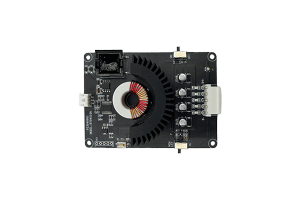

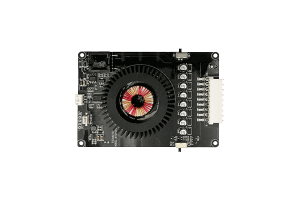

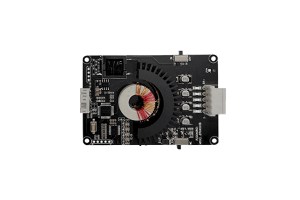

5A/10A Voltage Regulating Balancing Board Series
BT04S05A
Hardware Version
3/4S (Maximum Balancing Current 5A)
BT04S10A
Hardware Version
3/4S (Maximum Balancing Current 10A)
BT08S05A
Hardware Version
6/8S(Maximum Balancing Current 5A)
BT08S10A
Hardware Version
6/8S(Maximum Balancing Current 5A)
BT04S05B
Software Version
3/4S (Maximum Balancing Current 5A)
BT04S10B
Software Version
6/8S (Maximum Balancing Current 10A)
Accessory Module Series
Data Acquisition LCD Display
- With Data Acquisition
- Size: 77mm x 3mm
- For 4-string transformer hardware version balancing board
- For 4-string capacitor balancing board (3A/5A)
Display Only LCD Display
- Without Data Acquisition
- Size: 77mm x 3mm
- For 4-string transformer software version balancing board
- ...
Service Support
Product Advantages
- High Precision Monitoring: Capable of real-time monitoring of battery status, voltage, current, temperature, and other parameters to ensure the safe operation of the battery system.
- Intelligent Control: Achieving intelligent control and management of the battery system through advanced algorithms and control strategies, enhancing the efficiency and performance of the battery system.
- Efficient Protection: Equipped with comprehensive protection functions such as overcharge, over-discharge, over-temperature, short circuit protection, ensuring the safety and reliability of the battery system.
- Usability:The product interface is user-friendly, with simple operations, facilitating customers to perform daily maintenance and management.
ThunderLink Product Series
Our company produces smart active balancers, intelligent voltage difference repair devices, ideal diodes, lithium battery protection boards, capacitive active balancing boards, and other products.
In the future, we will continue to commit to the research and innovation of lithium battery smart active balancing technology and battery protection technology, promoting the application and development of lithium battery technology in more fields.
We believe that through our efforts, lithium batteries will bring more convenience and safety to people's lives.
应用场景
Electric Two-Wheelers
Forklifts
Mobile Energy Storage
RV Energy Storage
Power Tools
About ThunderLink
Stability comes from knowledge, innovation begins with skills
We firmly believe that the accumulation of knowledge and mastery of skills are the cornerstones of innovation. We are committed to creating a platform that integrates learning and practice, stimulating individual potential, and exploring unlimited possibilities.
Innovative Balancing Technology, Active Balancing Board Series
We are dedicated to enhancing the user experience with innovative technology and a series of balancing boards, integrating cutting-edge technology to create smart and convenient solutions that meet the needs of every product.
What We Hope
Share your wishes and suggestions so that we can make progress together and create happiness with technology. Your feedback is the driving force for our advancement, and let's join hands to create a better future.
- Contact Us
Open communication, sincere cooperation, we look forward to hearing from you.
Our Address
No. 306, Shu Xin Avenue, Pidu District, Chengdu, Sichuan Province
