10-String Inductive Active Adjacent Balancing Board

¥35.40

This module performs adjacent voltage difference balancing, where the chip internally triggers the balancing process when the voltage difference between adjacent batteries reaches above 0.1V;

It will cease operation when the voltage difference between adjacent batteries drops within 0.03V;

When used on battery packs during charging and discharging, the presence of adjacent voltage differences triggers the balancing work, and the voltage error of the battery pack is also pulled back to a more ideal value, reducing the cost of battery maintenance.

SKU: BL010S01A

Description

Pre-Purchase Notice:

This product is mainly used for balancing the voltage of each string in lithium battery packs such as ternary lithium, lithium iron phosphate, and lithium titanate. Before purchasing, please first check if the poor endurance is caused by excessive voltage difference in the battery pack.

Damage to the battery, excessive internal resistance, water ingress, or other such reasons will not be repairable.

The balancing board must be used in conjunction with a protection board! Some polymer batteries can also be used. Remember to consult with customer service in the official store before purchasing.

Product Overview

The lithium battery active balancer is specially designed for the charging and discharging of large-capacity series and parallel battery packs, featuring comprehensive and indiscriminate balancing capabilities for the entire pack.

The circuit board is coated with a three-proof paint, offering superior insulation, moisture resistance, leakage prevention, shock resistance, dust protection, corrosion resistance, anti-aging, and corona resistance, effectively protecting the circuitry and enhancing the product’s safety and reliability.

This product is suitable for ternary lithium and lithium iron phosphate batteries, with a minimum balancing voltage difference of 0.03V and a maximum balancing current of 1.2A.

At a voltage difference of 0.1V, the current is approximately 0.5-0.7A (which will actually depend on the battery’s capacity and internal resistance).



Product Specifications

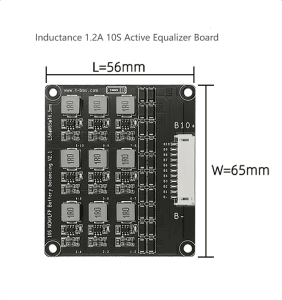

BL010S01A Image
Parameter Description
Size 56×65 mm
Brand Name ThunderLink
Product Name 10S 1.2A Inductive Balancing Board
Cell Strings 2S-10S
Applicable Cell Types Ternary Lithium/Lithium Iron Phosphate
Product Model BL010S01A
Operating Voltage Range 2.0V-4.5V
Balancing Current Around 0.5-0.7A for a voltage difference of 0.1V between cells; reaches maximum balancing current of 1.2A for a voltage difference of 0.2V or more; the smaller the voltage difference, the smaller the current.
Balancing Mode Adjacent balancing, active balancing
Package Contents Balancing board + wiring harness



Product Working Principle

The board operates when the voltage difference between adjacent cells reaches above 0.1V and stops working when it is within 0.03V.

During the charging and discharging of the battery pack, the voltage difference between adjacent cells triggers the balancing process, keeping the voltage error within an ideal state and reducing the battery maintenance cost.

Note: This board cannot be used as a repair tool and must be used in conjunction with a lithium battery protection board!

Product Operation Example
Connector BL08S1.2A
Name Definition
A LED Indicator Steady light: Balancing in progress / Off: Not balancing / Flashing: Circuit fault
B—B8+ B- Negative terminal of the first battery string
B1+ Positive terminal of the first battery string
B2+ Positive terminal of the second battery string
B3+ Positive terminal of the third battery string
B4+ Positive terminal of the fourth battery string
B5+ Positive terminal of the fifth battery string
B6+ Positive terminal of the sixth battery string
B7+ Positive terminal of the seventh battery string
B8+ Positive terminal of the eighth battery string



Product Factory Snapshots

BL010S01A Image Corresponding Parameters
Parameter Description
Size 56×65 mm
Brand Name ThunderLink
Product Name 10S 1.2A Inductive Balancing Board
Cell Strings 2S-10S
Applicable Cell Types Ternary Lithium/Lithium Iron Phosphate
Product Model BL010S01A
Operating Voltage Range 2.0V-4.5V
Balancing Current Around 0.5-0.7A for a voltage difference of 0.1V between cells; reaches maximum balancing current of 1.2A for a voltage difference of 0.2V or more; the smaller the voltage difference, the smaller the current.
Balancing Mode Adjacent balancing, active balancing
Package Contents Balancing board + wiring harness



Product Working Principle

The board operates when the voltage difference between adjacent cells reaches above 0.1V and stops working when it is within 0.03V.

During the charging and discharging of the battery pack, the voltage difference between adjacent cells triggers the balancing process, keeping the voltage error within an ideal state and reducing the battery maintenance cost.

Note: This board cannot be used as a repair tool and must be used in conjunction with a lithium battery protection board!

Product Operation Example Connection Definition
Connector BL08S1.2A
Name Definition
A LED Indicator Steady light: Balancing in progress / Off: Not balancing / Flashing: Circuit fault
B—B8+ B- Negative terminal of the first battery string
B1+ Positive terminal of the first battery string
B2+ Positive terminal of the second battery string
B3+ Positive terminal of the third battery string
B4+ Positive terminal of the fourth battery string
B5+ Positive terminal of the fifth battery string
B6+ Positive terminal of the sixth battery string
B7+ Positive terminal of the seventh battery string
B8+ Positive terminal of the eighth battery string



Product Factory Snapshots

Product Application Scenarios

ThunderLink products are suitable for a variety of scenarios, meeting the application needs of each scenario.

Precautions for Use

  1. Always follow the design parameters and operating conditions during use, and do not violate the specifications provided in this document, as this may damage the balancing board and consequently the battery pack.
  2. Anti-static measures must be taken during testing, installation, and when handling the balancing board to prevent electrostatic discharge.
  3. Be careful not to let wire leads, soldering irons, solder dregs, etc., come into contact with the components on the circuit board, as this could damage the balancing board.
  4. If any abnormalities occur during use, please stop using it immediately and return it to the manufacturer or have it repaired by a professional technician.
  5. This balancing board has undergone extensive reliability testing and is far more reliable than most balancing boards on the market. At the same time, ensuring the quality of the battery cells’ manufacturing process will help minimize the occurrence of combustion.

Safety Precautions:

Our company is committed to improving quality and reliability; however, electrical products generally have a certain probability of failure. Durability may vary depending on the environment and conditions of use. Use a design with a safety margin to avoid abnormal heating, smoking, or even personal accidents, fire accidents, and social damage due to overloading.

For more detailed usage information, please refer to the corporate technical documents in the Solutions and Cases section of the navigation bar.

Additional information

Dimensions 56 × 65 mm
